FA

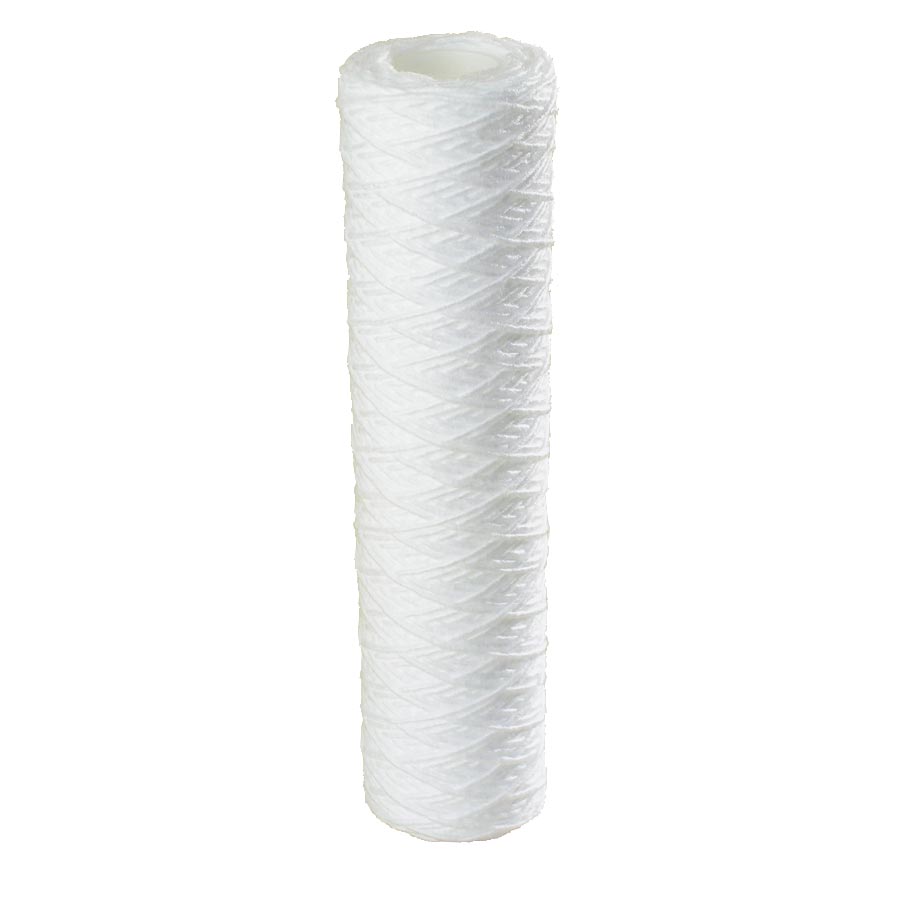

Filter cartridges for civil and industrial use. suitable for treatment of drinkable and not drinkable primary waters.
• Standard: ext. Ø 61mm (2,4”) int. Ø 28mm (1,1”)
• String wound polypropylene (FDA and EEC approved)
• Max. working temperature +80°C
• Polypropylene core (FDA and EEC approved)
• High pollutant retaining capacity
• High flow rates with minimum pressure drop
• Compatible with a large number of chemical agents
• Fibers and core in accordance with the FDA and EEC standards for foodstuffs
• Available also version “code 3” with double O-Ring for housings with connections of 1”1/4- 1”1/2 – 2”
• 2019 version
| CODE | MODEL | MICRONS | DIM. L – H MM | FLOW RATE LT/H | PIECES PACKING | KG PER MASTER | KG UNIT |
|---|---|---|---|---|---|---|---|
| 0CFMMI001 | FA MINI | 1 | 45 – 122 | 300 | 1,5 – 3,5 | 32 – 192 | 0,047 |
| 0CFMMI005 | FA MINI | 5 | 45 – 122 | 500 | 1,5 – 3,5 | 32 – 192 | 0,047 |
| 0CFMMI010 | FA MINI | 10 | 45 – 122 | 500 | 1,5 – 3,5 | 32 – 192 | 0,047 |
| 0CFMMI025 | FA MINI | 25 | 45 – 122 | 500 | 1,5 – 3,5 | 32 – 192 | 0,047 |
| 0CFMMI050 | FA MINI | 50 | 45 – 122 | 500 | 1,5 – 3,5 | 32 – 192 | 0,047 |
| 0CFMMI001С | FA 5″ MINI | 1 | 50 – 127 | 500 | 3,0 – 8,0 | 48 – 120 | 0,063 |
| 0CFMMI005С | FA 5″ MINI | 5 | 50 – 127 | 800 | 3,0 – 8,0 | 48 – 120 | 0,063 |
| 0CFMMI010С | FA 5″ MINI | 10 | 50 – 127 | 800 | 3,0 – 8,0 | 48 – 120 | 0,063 |
| 0CFMMI025С | FA 5″ MINI | 25 | 50 – 127 | 1000 | 3,0 – 8,0 | 48 – 120 | 0,063 |
| 0CFMMI050С | FA 5″ MINI | 50 | 50 – 127 | 1200 | 3,0 – 8,0 | 48 – 120 | 0,063 |
| 0CFA05001 | FA 5″ | 1 | 61 – 127 | 500 | 4,6 – 9,5 | 48 – 96 | 0,096 |
| 0CFA05005 | FA 5″ | 5 | 61 – 127 | 800 | 4,1 – 8,0 | 48 – 96 | 0,085 |
| 0CFA05010 | FA 5″ | 10 | 61 – 127 | 800 | 4,1 – 8,0 | 48 – 96 | 0,085 |
| 0CFA05025 | FA 5″ | 25 | 61 – 127 | 1000 | 4,1 – 8,0 | 48 – 96 | 0,085 |
| 0CFA05050 | FA 5″ | 50 | 61 – 127 | 1200 | 4,1 – 8,0 | 48 – 96 | 0,085 |
| 0CFA07001 | FA 7″ | 1 | 61 – 177 | 700 | 3,1 – 8,6 | 24 – 72 | 0,13 |
| 0CFA07005 | FA 7″ | 5 | 61 – 177 | 1000 | 3,1 – 8,6 | 24 – 72 | 0,13 |
| 0CFA07010 | FA 7″ | 10 | 61 – 177 | 1000 | 3,1 – 8,6 | 24 – 72 | 0,13 |
| 0CFA07025 | FA 7″ | 25 | 61 – 177 | 1400 | 3,0 – 8,0 | 24 – 72 | 0,13 |
| 0CFA07050 | FA 7″ | 50 | 61 – 177 | 1700 | 2,7 – 7,6 | 24 – 72 | 0,11 |
| 0CFA09001 | FA 9 3/4″ | 1 | 61 – 250 | 1000 | 4,6 – 9,5 | 24 – 48 | 0,19 |
| 0CFA09005 | FA 9 3/4″ | 5 | 61 – 250 | 1500 | 4,1 – 8,0 | 24 – 48 | 0,17 |
| 0CFA09010 | FA 9 3/4″ | 10 | 61 – 250 | 1500 | 4,1 – 8,0 | 24 – 48 | 0,17 |
| 0CFA09025 | FA 9 3/4″ | 25 | 61 – 250 | 2000 | 4,1 – 8,0 | 24 – 48 | 0,17 |
| 0CFA09050 | FA 9 3/4″ | 50 | 61 – 250 | 2500 | 4,0 – 8,0 | 24 – 48 | 0,17 |
| 0CFA20001 | FA 20″ | 1 | 61 – 516 | 2000 | 8,7 | 24 | 0,36 |
| 0CFA20005 | FA 20″ | 5 | 61 – 516 | 3000 | 8,2 | 24 | 0,34 |
| 0CFA20010 | FA 20″ | 10 | 61 – 516 | 3000 | 8,2 | 24 | 0,34 |
| 0CFA20025 | FA 20″ | 25 | 61 – 516 | 4000 | 8,2 | 24 | 0,34 |
| 0CFA20050 | FA 20″ | 50 | 61 – 516 | 5000 | 8 | 24 | |
| 0CFA30001 | FA 30″ | 1 | 61 – 762 | 3000 | 17,7 | 30 | 0,59 |
| 0CFA30005 | FA 30″ | 5 | 61 – 762 | 4500 | 15,6 | 30 | 0,52 |
| 0CFA30010 | FA 30″ | 10 | 61 – 762 | 4500 | 15,6 | 30 | 0,52 |
| 0CFA30025 | FA 30″ | 25 | 61 – 762 | 6000 | 15,6 | 30 | 0,52 |
| 0CFA30050 | FA 30″ | 50 | 61 – 762 | 7500 | 14,5 | 30 | 0,48 |
CARTON BOX
