BY-PASS

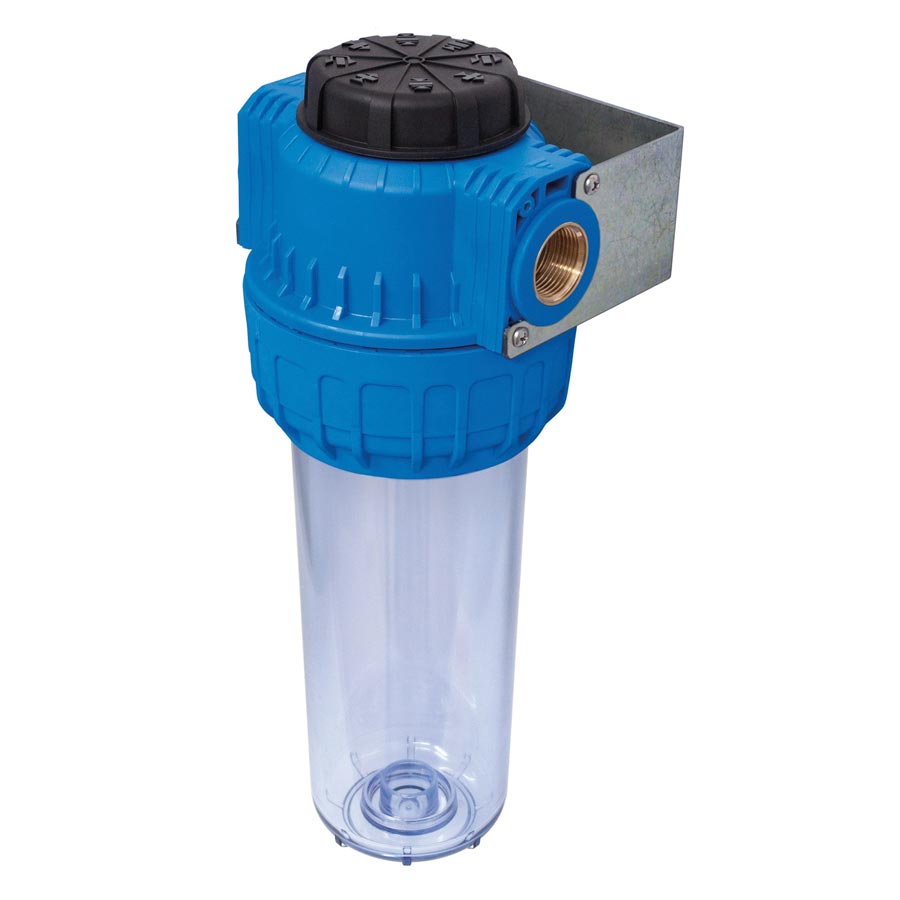

Self-cleaning filter housing with integrated by-pass system, suggested for all drinking water applications, it allows flexible and quick installations. with a selector cap for a simple change between the different functions: filtering, closure, back-washing and by-pass.
• Filter housing with integrated BY-PASS system
• Maximum working pressure : 8bar
• Working temperature: 0°C / 30°C
• Connections ¾ or 1” GAS with brass inserts
• Filter head and ring in filled polypropylene
• Bowl in SAN transparent
• Air plug
• By-pass internal selector in POM
• Possibility to equip with wall bracket
• Suitable for DOE cartridges
RECOMMENDED USABLE CARTRIDGES
FA / FA-PA cristalli / FA-PA carbone / FPP / GT / GTX / CE / CV / CA / CP
| CODE | CONNECT | CARTR. LENGHT | DIM. L – H MM | FLOW RATE LT/H | PIECES PACKING | KG PER MASTER | KG UNIT |
|---|---|---|---|---|---|---|---|
| 0BY0914 | 3/4″ | 9″ 3/4 | 133 – 307 | 6500 | 6 | 6 | 1 |
| 0BY0915 | 1″ | 9″ 3/4 | 133 – 307 | 7000 | 6 | 6 | 1 |
| 0BY2014 | 3/4″ | 20″ | 133 – 668 | 6500 | 6 | 6 | 1 |
| 0BY2015 | 1″ | 20″ | 133 – 668 | 7000 | 6 | 6 | 1 |
| 0AY090411 | 3/4″ | 9″ 3/4 | 133 – 418 | 6500 | 6 | 6 | 1 |
| 0AY090511 | 1″ | 9″ 3/4 | 133 – 418 | 7000 | 6 | 6 | 1 |
CARTON BOX
