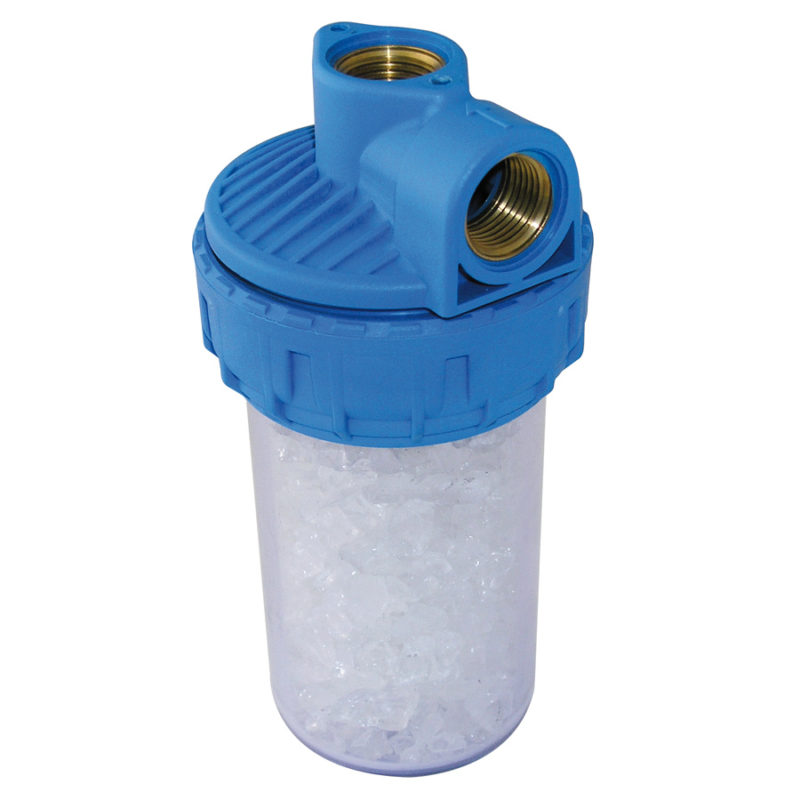

CRISTALSOFT MAG2
Filter for polyphosphate dosing with 12.800 gauss magnet to increase the capacity to transform limestone and protect equipments and installations.
• Max. working pressure 8 bar
• Min/max. working temperature 0°C / +30°C
• Two ways IN-OUT 90° head and ring made of filled polypropylene
• Head with or without brass insert
• Magnet 12.800 Gauss
• Transparent SAN bowl
• Possibility to equip with wall bracket
• 2019 version
| CODE | MODEL | CONNECTIONS | DIM. L – H MM | FLOW RATE LT/H | PIECES PACKING | KG PER MASTER | VOL. M3 | KG UNIT |
|---|---|---|---|---|---|---|---|---|
| 0F1CM32 | SOFT MAG ci | 1/2″ 90° | 85 – 168 | 800 | 30 | 17 | 0,0944 | 0,57 |
| 0F1CM34 | SOFT MAG si | 1/2″ 90° | 86 – 168 | 800 | 30 | 17 | 0,0944 | 0,57 |
CARTON BOX
