OP603.si

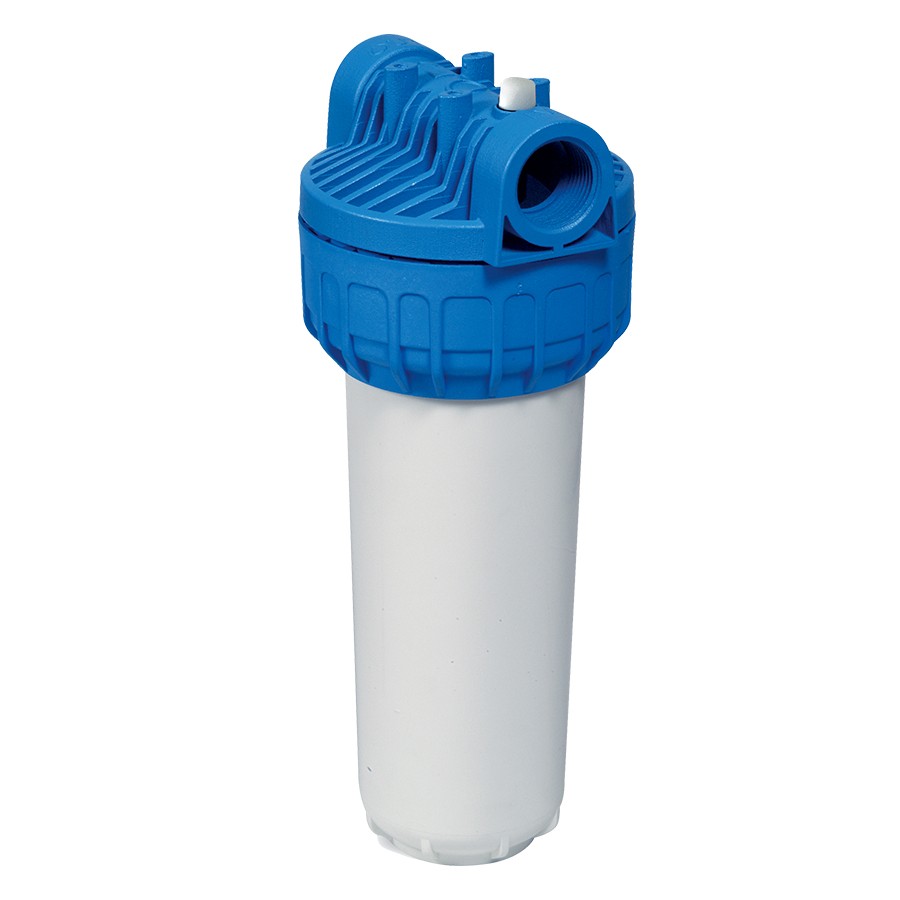

Housing for domestic and technological uses for treatment of drinking water with neutral ph. With white polypropylene bowl.
• Max. working pressure 8 bar
• Min/max. working temperature 0°C / +40°C
• Head and ring made of filled polypropylene
• Possibility to equip with wall bracket
RECOMMENDED USABLE CARTRIDGES
FA / FA-PA cristalli / FA-PA carbone / FPP / GT-GTL / GTS* / GTX / GTSX* / CE / CA
| CODE | CONNECT | CARTR. LENGHT | DIM. L – H MM | FLOW RATE LT/H | PIECES PACKING | KG PER MASTER | KG UNIT | VOL. M3 |
|---|---|---|---|---|---|---|---|---|
| 0A3200140 | 1/4″ | 20″ | 133 – 588 | 1500 | 6 | 12 | 2 | 0,11 |
| 0A3200240 | 3/8″ | 20″ | 133 – 588 | 5000 | 6 | 13 | 2,17 | 0,11 |
| 0A3200340 | 1/2″ | 20″ | 133 – 588 | 6000 | 6 | 13 | 2,17 | 0,11 |
| 0A3200440 | 3/4″ | 20″ | 133 – 588 | 6500 | 6 | 12 | 2 | 0,11 |
| 0A3200540 | 1″ | 20″ | 133 – 588 | 7000 | 6 | 12 | 2 | 0,11 |
| 0A3050140 | 1/4″ | 5″ | 133 – 195 | 1500 | 24 | 20 | 0,83 | 0,112 |
| 0A3050240 | 3/8″ | 5″ | 133 – 195 | 5000 | 24 | 20 | 0,83 | 0,112 |
| 0A3050340 | 1/2″ | 5″ | 133 – 195 | 6000 | 24 | 20 | 0,83 | 0,112 |
| 0A3050440 | 3/4″ | 5″ | 133 – 195 | 6500 | 24 | 20 | 0,83 | 0,112 |
| 0A3050540 | 1″ | 5″ | 133 – 195 | 7000 | 24 | 20 | 0,83 | 0,112 |
| 0A3070140 | 1/4″ | 7″ | 133 – 245 | 1500 | 12 | 11 | 0,92 | 0,091 |
| 0A3070240 | 3/8″ | 7″ | 133 – 245 | 5000 | 12 | 11 | 0,92 | 0,091 |
| 0A3070340 | 1/2″ | 7″ | 133 – 245 | 6000 | 12 | 11 | 0,92 | 0,091 |
| 0A3070440 | 3/4″ | 7″ | 133 – 245 | 6500 | 12 | 11 | 0,92 | 0,091 |
| 0A3070540 | 1″ | 7″ | 133 – 245 | 7000 | 12 | 11 | 0,92 | 0,091 |
| 0A3090140 | 1/4″ | 9 3/4″ | 133 – 307 | 1500 | 12 | 12 | 1 | 0,091 |
| 0A3090240 | 3/8″ | 9 3/4″ | 133 – 307 | 5000 | 12 | 12 | 1 | 0,091 |
| 0A3090340 | 1/2″ | 9 3/4″ | 133 – 307 | 6000 | 12 | 12 | 1 | 0,091 |
| 0A3090440 | 3/4″ | 9 3/4″ | 133 – 307 | 6500 | 12 | 12 | 1 | 0,091 |
| 0A3090540 | 1″ | 9 3/4″ | 133 – 307 | 7000 | 12 | 12 | 1 | 0,091 |
CARTON BOX
