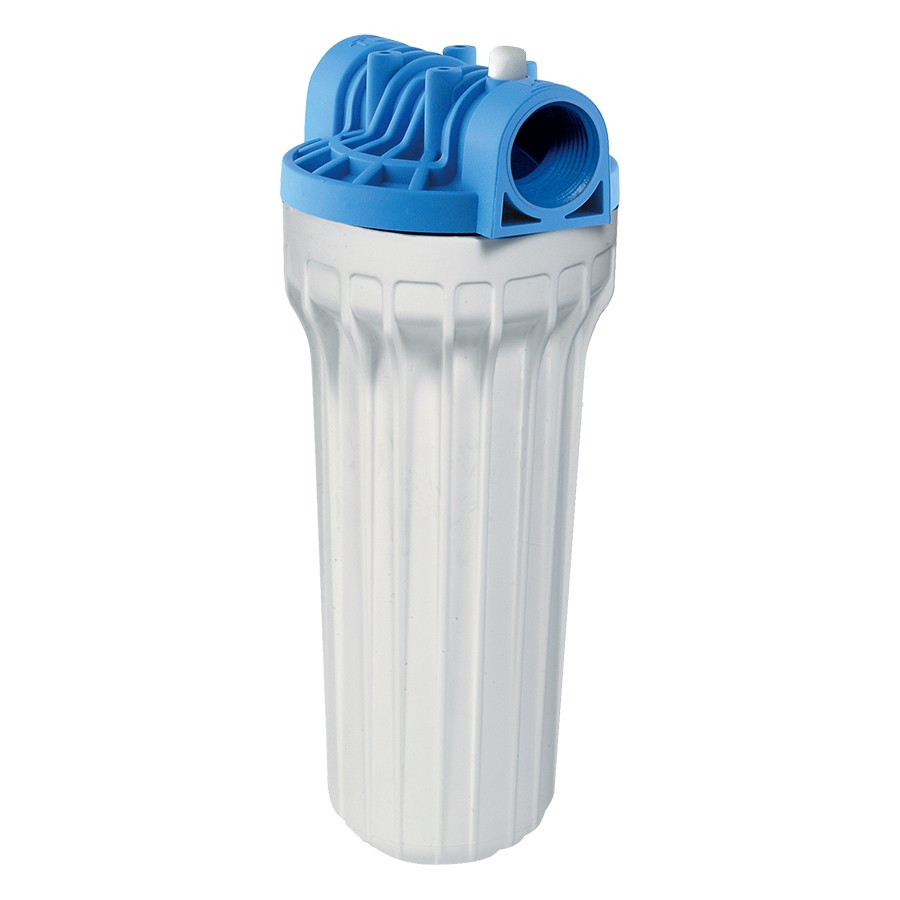

OP802.si
Housing for domestic and technological uses for treatment of drinking water with neutral ph. With white polypropylene bowl.
• Max. working pressure 8 bar
• Min/max. working temperature 0°C / +40°C
• Brass inserts
• Head made of filled polypropylene
• Possibility to equip with wall bracket
RECOMMENDED USABLE CARTRIDGES
FA / FA-PA cristalli / FA-PA carbone / FPP / GT-GTL / GTS* / GTX / GTSX* / CE / CA
| CODE | CONNECT | CARTR. LENGHT | DIM. L – H MM | FLOW RATE LT/H | PIECES PACKING | KG PER MASTER | KG UNIT | VOL. M3 |
|---|---|---|---|---|---|---|---|---|
| 0A8052140 | 1/4″ | 5″ | 133 – 195 | 1500 | 24 | 20 | 0,83 | 0,112 |
| 0A8052240 | 3/8″ | 5″ | 133 – 195 | 5000 | 24 | 20 | 0,83 | 0,112 |
| 0A8052340 | 1/2″ | 5″ | 133 – 195 | 6000 | 24 | 20 | 0,83 | 0,112 |
| 0A8052440 | 3/4″ | 5″ | 133 – 195 | 6500 | 24 | 20 | 0,83 | 0,112 |
| 0A8052540 | 1″ | 5″ | 133 – 195 | 7000 | 24 | 20 | 0,83 | 0,112 |
| 0A8072140 | 1/4″ | 7″ | 133 – 245 | 1500 | 12 | 11 | 0,92 | 0,091 |
| 0A8072240 | 3/8″ | 7″ | 133 – 245 | 5000 | 12 | 11 | 0,92 | 0,091 |
| 0A8072340 | 1/2″ | 7″ | 133 – 245 | 6000 | 12 | 11 | 0,92 | 0,091 |
| 0A8072440 | 3/4″ | 7″ | 133 – 245 | 6500 | 12 | 11 | 0,92 | 0,091 |
| 0A8072540 | 1″ | 7″ | 133 – 245 | 7000 | 12 | 11 | 0,92 | 0,091 |
| 0A8092140 | 1/4″ | 9 3/4″ | 133 – 307 | 1500 | 12 | 12 | 1 | 0,091 |
| 0A8092240 | 3/8″ | 9 3/4″ | 133 – 307 | 5000 | 12 | 12 | 1 | 0,091 |
| 0A8092340 | 1/2″ | 9 3/4″ | 133 – 307 | 6000 | 12 | 12 | 1 | 0,091 |
| 0A8092440 | 3/4″ | 9 3/4″ | 133 – 307 | 6500 | 12 | 12 | 1 | 0,091 |
| 0A8092540 | 1″ | 9 3/4″ | 133 – 307 | 7000 | 12 | 12 | 1 | 0,091 |
CARTON BOX
