UV X

UV Sterilizers UV-X

You are here:

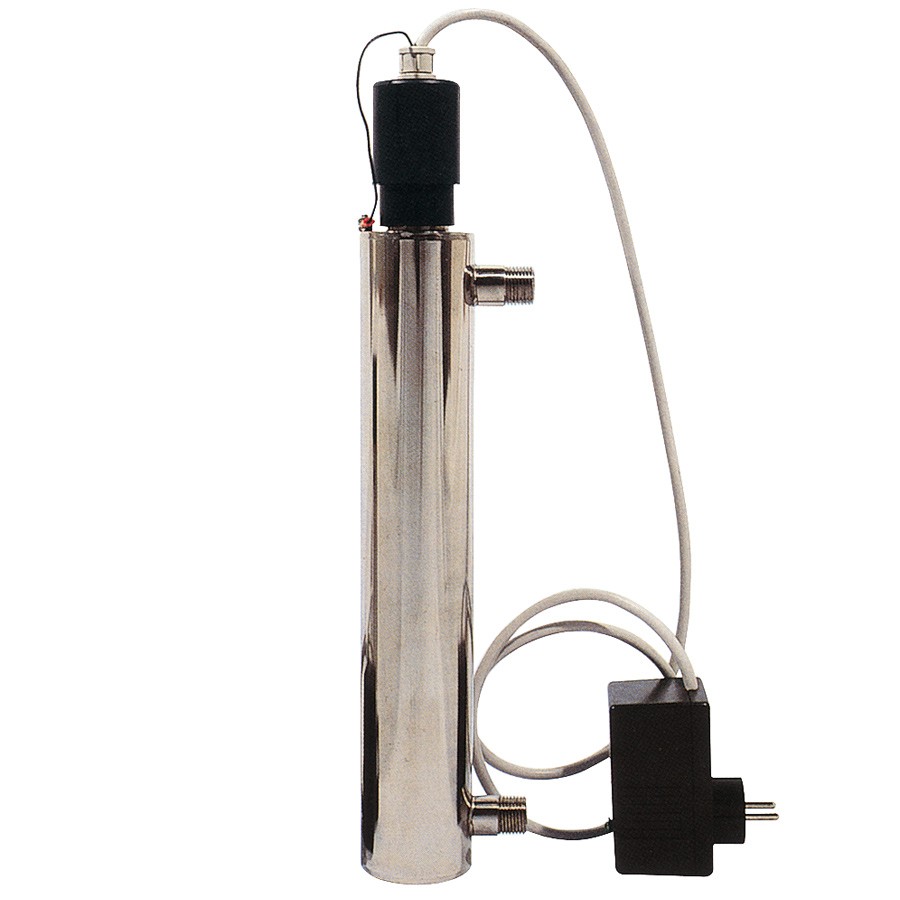

U.v. sterilizers for drinking water, suitable for domestic and industrial use.
Upon request the models UV 10, UV 30, UV 45 and UV 60 can be equipped with electrovalve and/or radiation control.

• Max. working pressure 9 bar
• Working temperature 0°C / +50°C
• Stainless steel treatment chamber, AISI 304
• Quartz pipe
• Germicide lamp UVC standard
• Protection fuse
• Power supply 230V – 50Hz
• 2019 version

CODE	MODEL	CONNECTIONS	MATERIAL	LAMP NUMBER	IRRADIATION	POWER W	DIM. L – H MM	FLOW RATE LT/H
OEO 203	UV 3	1/8″	AISI 304	1	30 000	11	40 – 300	300
OEO 206	UV 6	1/2″M	AISI 304	1	30 000	16	60 – 430	600
OEO 210	UV 10	3/4″M	AISI 304	1	30 000	30	60 – 575	1100
OEO 230	UV 30	1″M	AISI 304	1	30 000	40	60 – 940	2700
OEO 245	UV 45	1″M	AISI 304	2	30 000	40	230 – 250	4500
OEO 260	UV 60	1″1/2M	AISI 304	2	40 000	40	130 – 1000	6000
OEO 280	UV 80	2″M	AISI 304	3	40 000	40	130 – 1000	8000
OEO 2140	UV 140	2″M	AISI 304	4	40 000	40	170 – 1000	14 000
OEO 2200	UV 200	2″M	AISI 304	5	40 000	40	170 – 1000	20 000
OEO 2102	UV 10	3/4″M	AISI 316	1	30 000	30	60 – 575	1100
OEO 2302	UV 30	1″M	AISI 316	1	30 000	40	60 – 940	2700
OEO 2452	UV 45	1″M	AISI 316	2	30 000	40	230 – 250	4500
OEO 2602	UV 60	1″1/2M	AISI 316	2	40 000	40	130 – 1000	6000
OEO 2802	UV 80	2″M	AISI 316	3	40 000	40	130 – 1000	8000
OEO 21402	UV 140	2″M	AISI 316	4	40 000	40	170 – 1000	14 000
0OEO 22002	UV 200	2″M	AISI 316	5	40 000	40	170 – 1000	20 000
